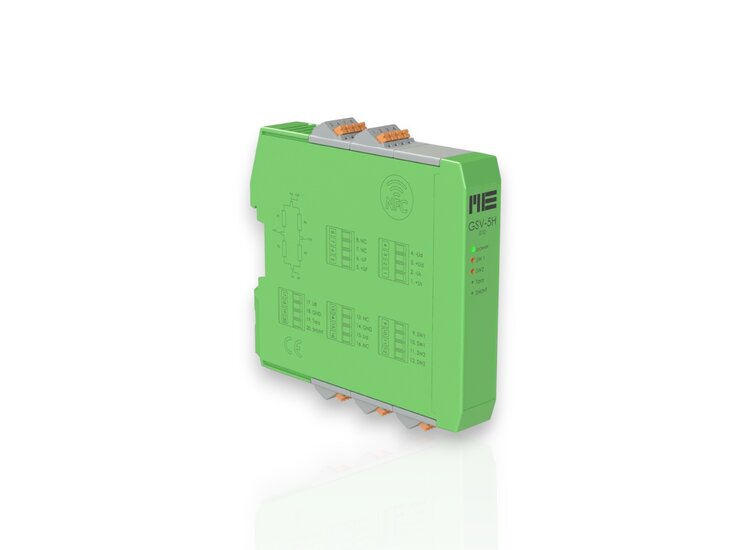

The GSV-5H is a high-performance strain gauge amplifier in a slim DIN rail housing for industrial applications where precise measurements need to be reliably converted into a standard signal. The standard version offers a ±10 V analog output, making it immediately compatible with many controllers and evaluation units. Thanks to its compact design and 20 plug-in/spring-clamp terminals, the device can be installed quickly and securely in control cabinets.
A key advantage: The GSV-5H is designed so that important parameters can be conveniently configured via the "GSV-5H" app. This allows users to flexibly adapt the amplifier to different requirements – for example, switching the analog output to 4…20 mA, selecting the offset to suit further processing, or precisely adjusting the cutoff frequency to the dynamics of the application. Four input sensitivities are also available, making the GSV-5H suitable for various strain gauge sensors. With two threshold outputs and a tare function via control line, it is also ideally suited for practical automation tasks.

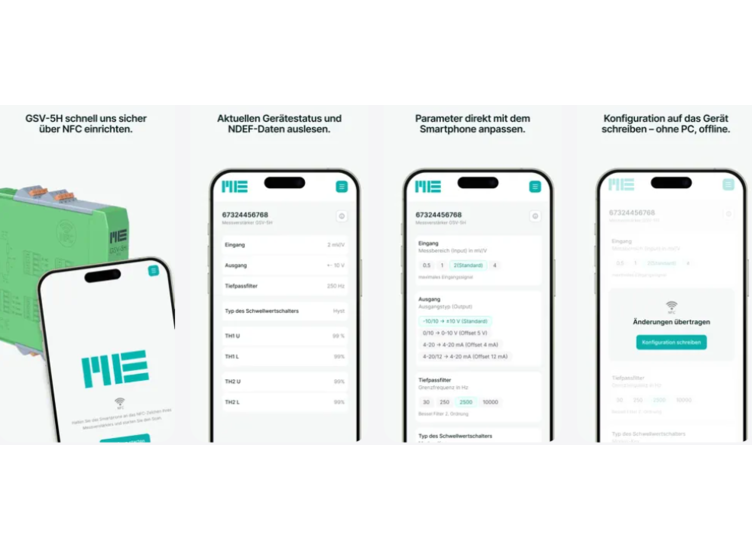

Easy configuration with the new "GSV-5H" app
We recommend using the "GSV-5H" app because it highlights the product's greatest advantage:
A single standard device (±10 V) covers many variants – without a variety of items, without modifications, and without the risk of ordering the wrong one.
This app is available free of charge in the Google Play Store and the Apple App Store.
Why this is important for customers:
Easier selection: Customers order the standard version and configure it later as needed.
Faster commissioning: Settings can be adjusted directly on-site, without waiting for a different device variant.
Greater operational flexibility: If requirements change (e.g., a different input signal, a different evaluation system), the device remains usable.
Ideal for serial production machines and service calls: Same hardware, different configurations – saves on inventory and reduces downtime.
In short: The app makes the GSV-5H future-proof, easy to service, and particularly economical because changes can be made via configuration instead of hardware replacement.
